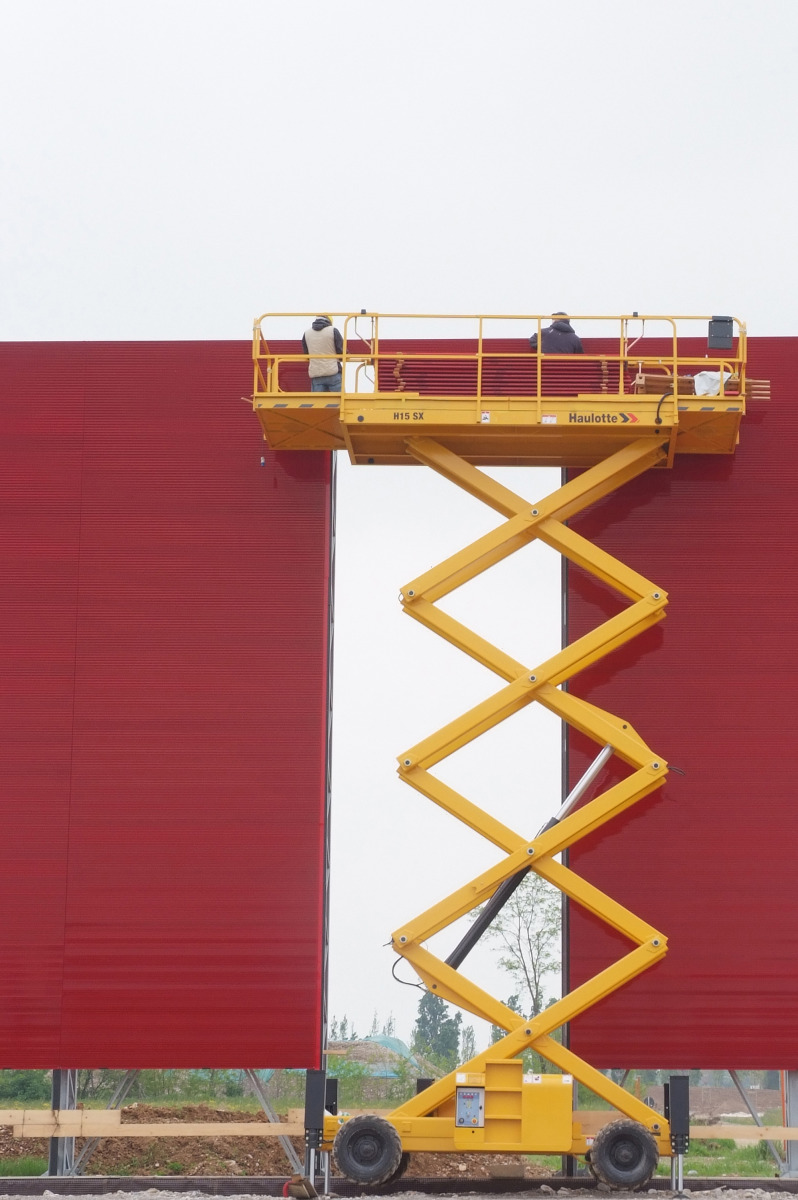

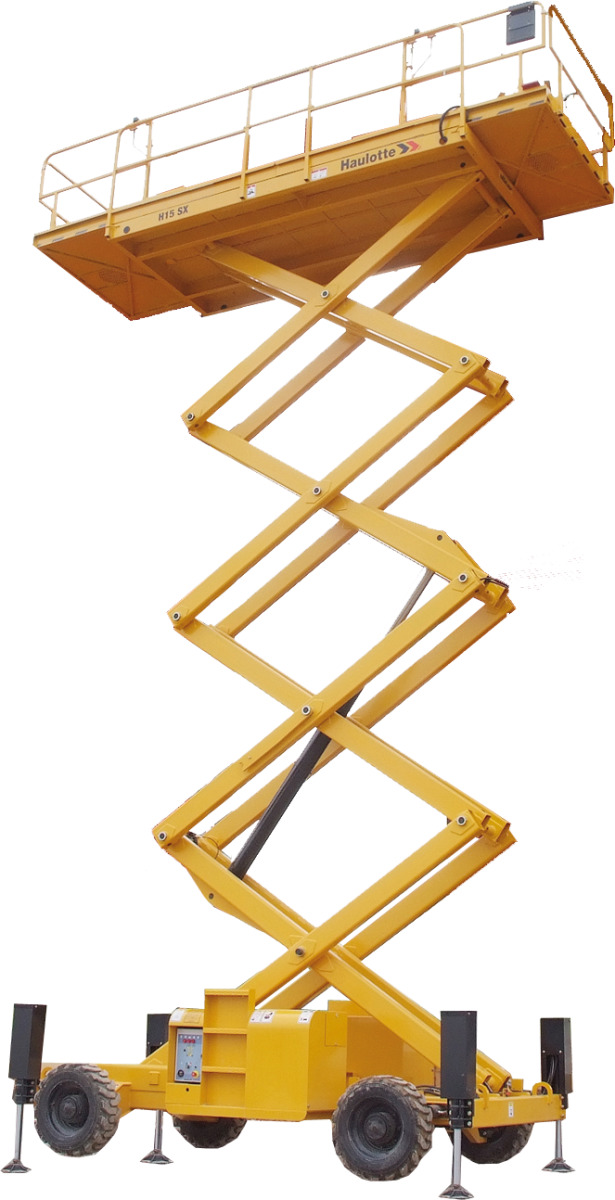

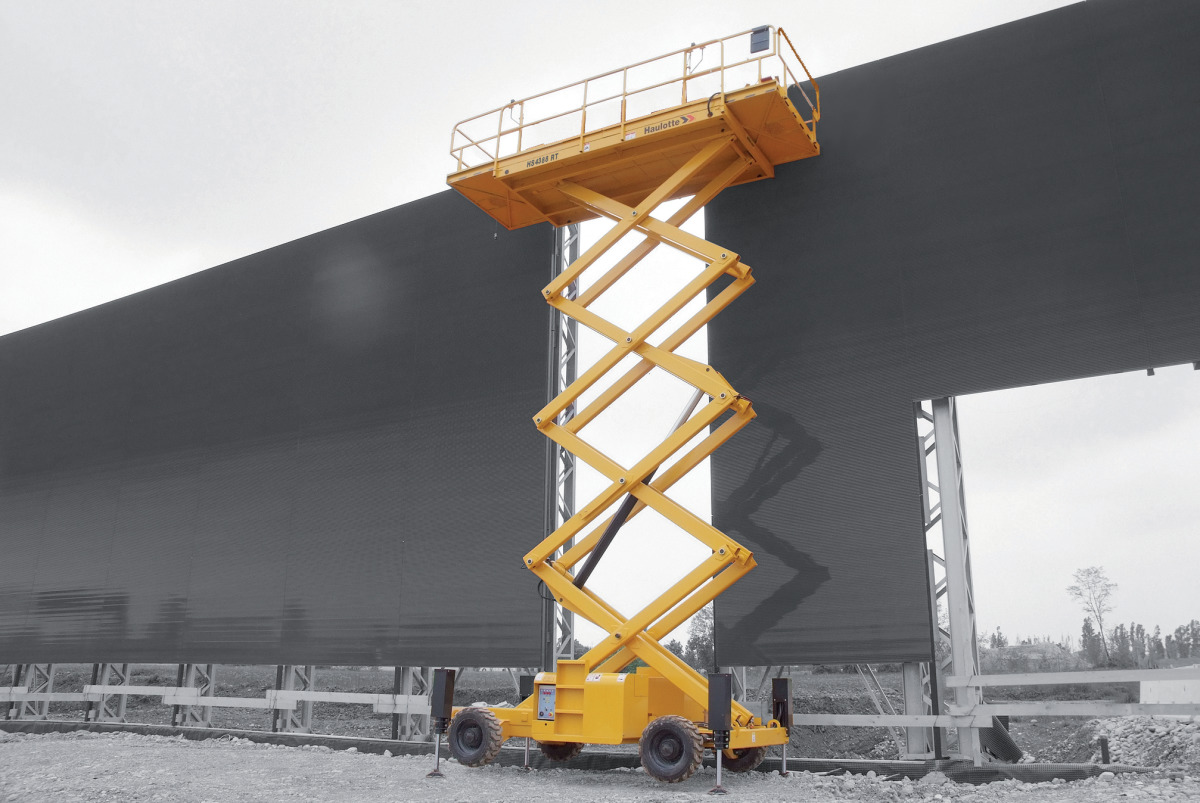

Diesel Scissor LiftsH15 SX

  • Diesel Scissor Lifts
  • Diesel
  • Rough terrain
  • Outside use
  • Building works
  • Finishings
  • Maintenance & restoration
  • Sporting & other events
  • Exceptional rough terrain capability
  • Hydraulic differential lock for improved RT capability
  • 35 cm ground clearance ensures exceptional rough terrain performance
  • 4 wheel drive
  • Excellent manoeuverability
  • Tight turning radius
  • Proportional controls for extremely smooth movements

Working height 15 m
Platform height 13 m
Lift capacity 500 kg (4 pers.)
Platform length 4 m
Extended platform length 6 m
Platform extension length 1 m
Platform width 1.89 m
Height - stowed 2.77 m
Width 2.25 m
Length 4.18 m
Wheelbase 2.75 m
Drive speed 1.6 - 6 km/h
Maximum drive height 10 m
Gradeability 45 %
Tilt alarm 5 °
Lift / lower speed 45 s / 57 s
Turning radius - outside 4.83 m
Tyres - foam-filled 10 - 16.5
Engine Hatz, 23.1 kW (31.4 hp), Stage 3A
Hydraulic system capacity 100 l
Weight 6 300 kg
Platform size - extended 6 x 1.89 m
Number of extensions 2
Ground clearance 35 cm
Guardrails lowered 1.93 m
Lift capacity on the extension 200 kg
  • 4 wheel drive (2 wheel steer)
  • Removable upper control box
  • Platform Load Management System
  • 2 metres of platform extension
  • 5° tilt alarm
  • Horn
  • Hourmeter
  • 12 V - 95 Ah batteries
  • 14 V - 50 A alternator
  • Hydraulic brakes
  • Manual emergency lowering system
  • Centralised stabiliser
  • Towing and lifting hooks
  • Non-marking tyres
  • Power to platform
  • Biodegradable hydraulic oil
  • Warm environment kit
  • Encoded starting device
  • Telematics ready
  • Motion alarm for movements and translation
  • Travel alarm
  • Rotating beacon
  • Working light
