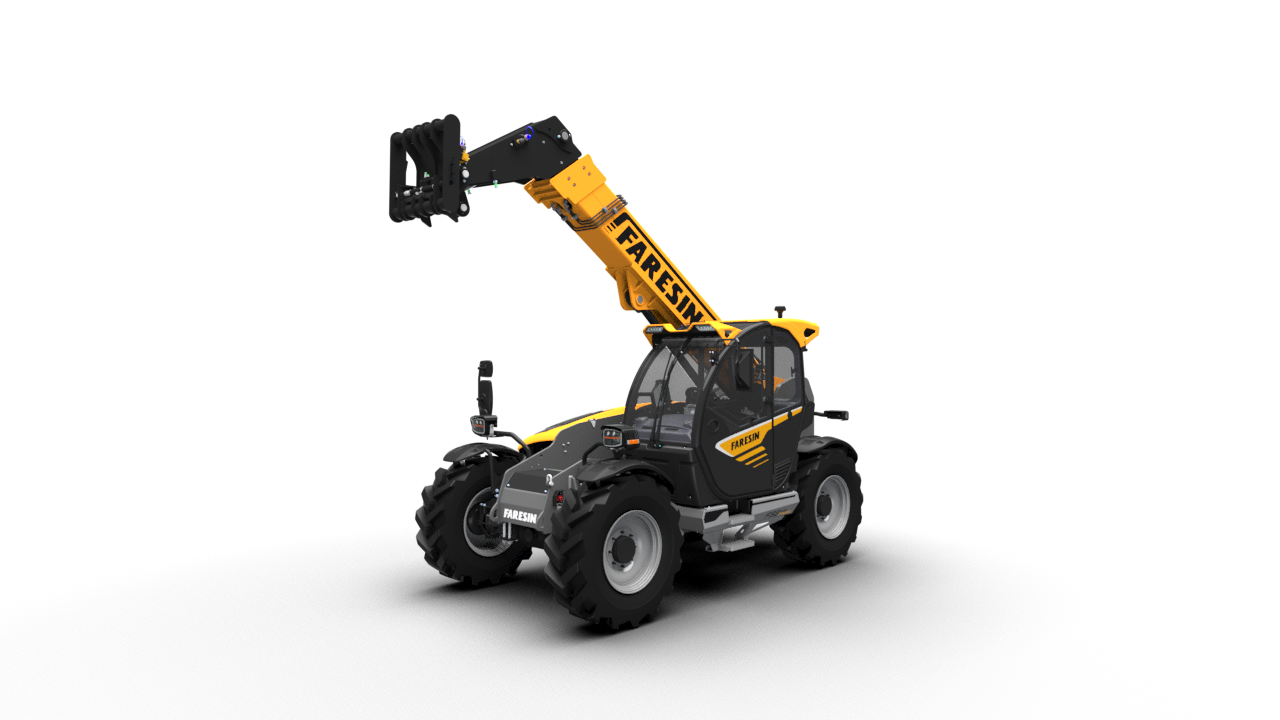

FS 7.40
A versatile and reliable telehandler with a 4‑ton lifting capacity and a 7.1‑metre lift height, designed for efficient handling in construction environments
FS 7.40 Technical data
Model
FS 7.40
Max lifting capacity
4000 kg
Lift Height
7.1 m
Maximum Reach
3.6 m
Height
2450 mm
Width
2310 mm
Length
4760 mm
Weight
7870 kg
Engine
Deutz 75/102 kW/HP Stage IIIA
Transmission
Hydrostatic
FS 7.45
Designed for heavier loads, the FS 7.45 combines a 4.5-ton lifting capacity with compact dimensions and precise handling, making it ideal for demanding construction applications.
FS 7.45 Technical data
Model
FS 7.45
Max lifting capacity
4500 kg
Lift Height
7.1 m
Maximum Reach
3.6 m
Height
2450 mm
Width
2310 mm
Length
4760 mm
Weight
8470 kg
Engine
Deutz 75/102 kW/HP Stage IIIA
Transmission
Hydrostatic
FS 8.40
The FS 8.40 combines an 8-metre lift height with excellent stability and reach, making it ideal for stacking and material placement at height.
FS 8.40 Technical data
Model
FS 8.40
Max lifting capacity
4000 kg
Lift Height
8 m
Maximum Reach
4.5 m
Height
2450 mm
Width
2310 mm
Length
5190 mm
Weight
8720 kg
Engine
Deutz 75/102 kW/HP Stage IIIA
Transmission
Hydrostatic

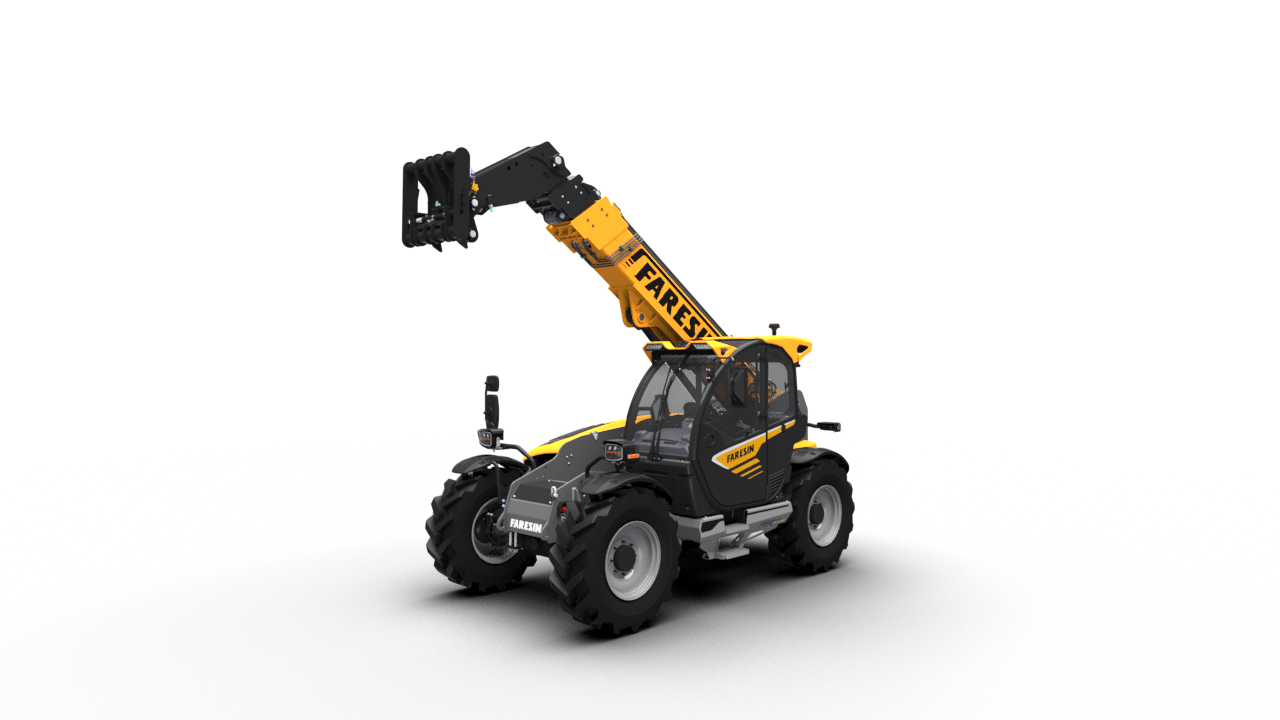

FS 10.40
The FS 10.40 delivers a 4‑ton lifting capacity with nearly 10 metres of lift height, offering extended reach and high productivity for demanding, large‑scale handling operations.
FS 10.40 Technical data
Model
FS 10.40
Max lifting capacity
4000 kg
Lift Height
9.9 m
Maximum Reach
6.5 m
Height
2450 mm
Width
2310 mm
Length
5280 mm
Weight
9050 kg
Engine
Deutz 75/102 kW/HP Stage IIIA
Transmission
Hydrostatic

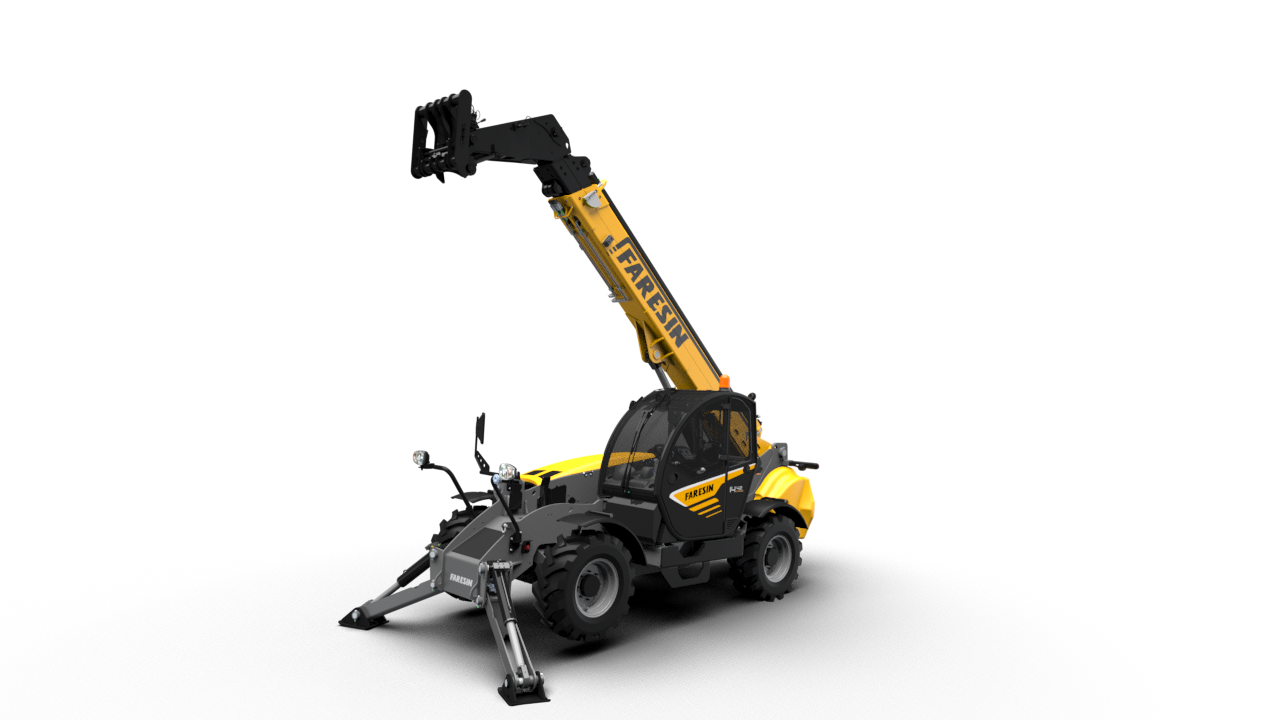

FR 14.42
A high‑reach telehandler with a 4.2‑ton lifting capacity and a 14‑metre lift height, engineered for efficient material handling in large construction environments.
FR 14.42 Technical data
Model
FR 14.42
Max lifting capacity
4200 kg
Lift Height
13.6 m
Maximum Reach
9.75 m
Height
2500 mm
Width
2331 mm
Length
6370 mm
Weight
11110 kg
Engine
Deutz 75/102 kW/HP Stage IIIA
Transmission
Hydrostatic
Stabilisers
Yes

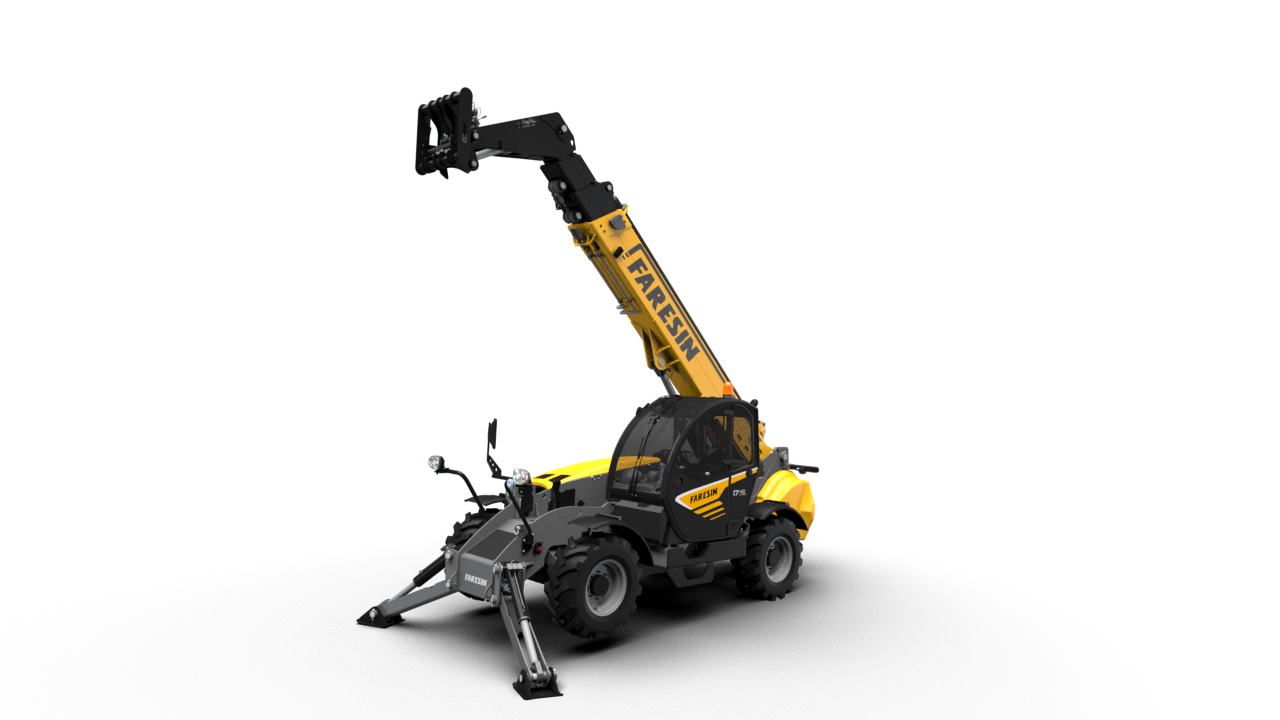

FR 17.40
Built for maximum reach, the FR 17.40 delivers a 17‑metre lift height and robust lifting performance, supporting safe and efficient handling on large‑scale construction sites.
FR 17.40 Technical data
Model
FR 17.40
Max lifting capacity
4000 kg
Lift Height
16.4 m
Maximum Reach
12.6 m
Height
2500 mm
Width
2331 mm
Length
6520 mm
Weight
11810 kg
Engine
Deutz 75/102 kW/HP Stage IIIA
Transmission
Hydrostatic
Stabilisers
Yes
FR 17.45
Combining a 4.5-ton lifting capacity with a 17-metre lift height, the FR 17.45 is designed for demanding construction applications requiring maximum reach and lifting performance.
FR 17.45 Technical data
Model
FR 17.45
Max lifting capacity
4500 kg
Lift Height
16.4 m
Maximum Reach
12.6 m
Height
2560 mm
Width
2360 mm
Length
6520 mm
Weight
12150 kg
Engine
Deutz 75/102 kW/HP Stage IIIA
Transmission
Hydrostatic
Stabilisers
Yes
