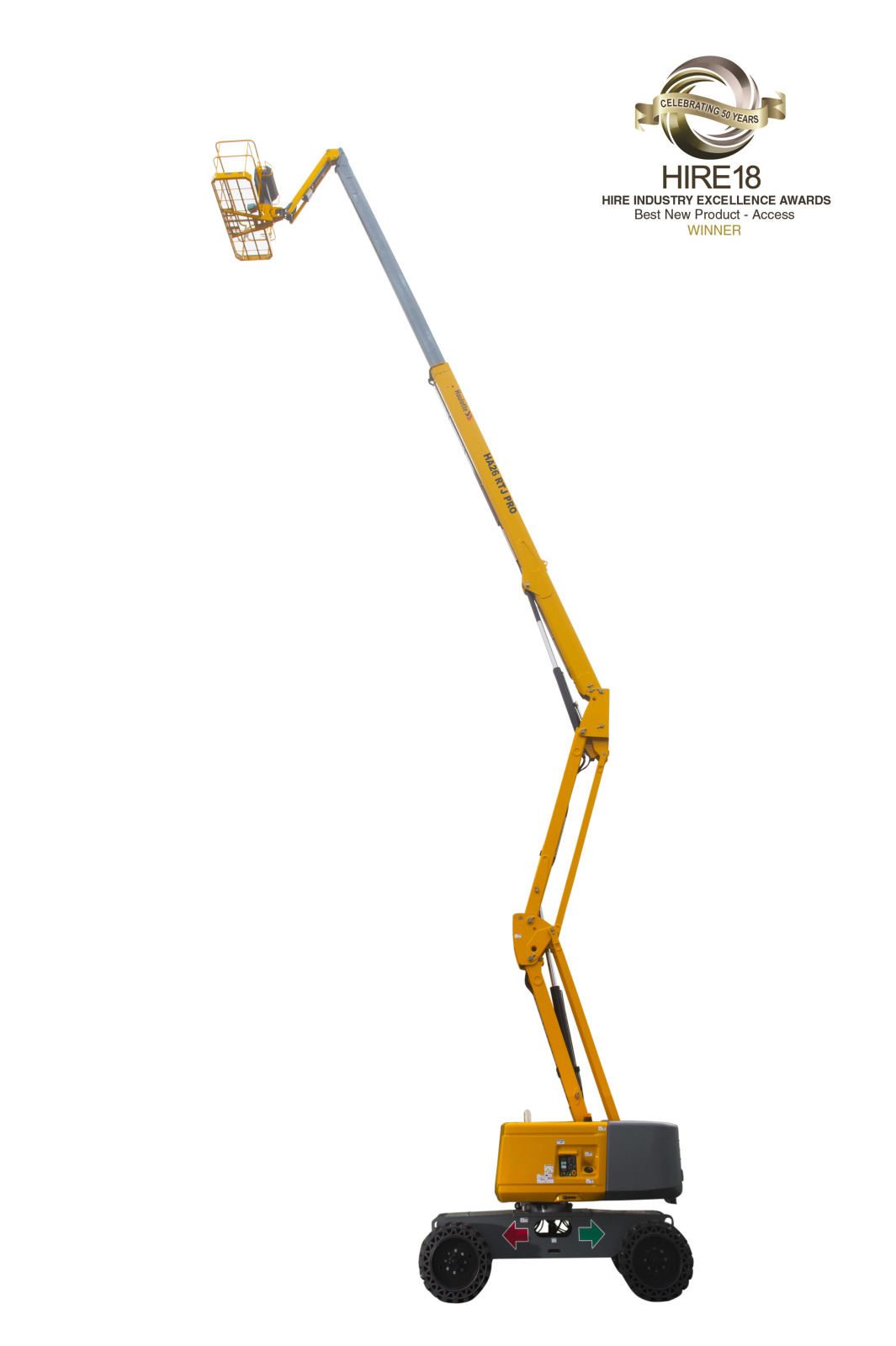

Diesel Articulating BoomsHA26 RTJ PRO

  • Diesel Articulating Booms
  • Diesel
  • Rough terrain
  • Outside use
  • Building works
  • Finishings
  • Maintenance & restoration
  • Landscaping
  • Sporting events
  • Large modular basket
  • Dual load basket capacity 250 - 350 kg

Working height 26.4 m
Platform height 24.4 m
Horizontal outreach 17.5 m
Up and over clearance 9.3 m
Lift capacity 250 kg (2 pers.) - option 350 kg
Platform size 2.44 x 0.91 m
Length - stowed 11.8 m
Width 2.48 m
Height - stowed 2.97 m
Vertical jib rotation 133° (- 65° / + 68°)
Platform rotation 180 °
Turntable rotation 360° continuous
Tailswing 0.76 m
Wheelbase 2.8 m
Ground clearance 48 cm
Tilt 4 °
Drive speed 5 km/h
Gradeability 45 %
Turning radius - outside 4.35 m
Power source Kohler 36.5 kW, stage 5 ; NRC: Kubota, 36.5kW, Stage 3A
Weight 15 500 kg
Storage / transport length 9.4 m
Storage / transport height 2.98 m
Hydraulic system capacity 140 l
Fuel tank capacity 80 l
Tyres - solid rough terrain 1025 x 365 mm
Maximum wind speed rating 45 km/h
  • Lateral swing door entry gate
  • Haulotte Activ'Shield Bar 2.0
  • Drop bar entry gate
  • Hydraulic generator 6.5 kVA (standard in AUS / NZ)
  • Cold weather kit - 20° / arctic weather kit - 25°C
  • Non marking tyres (standard in AUS / NZ)
  • Dual load capacity 250 / 350 kg (restricted) (standard in AUS / NZ)
