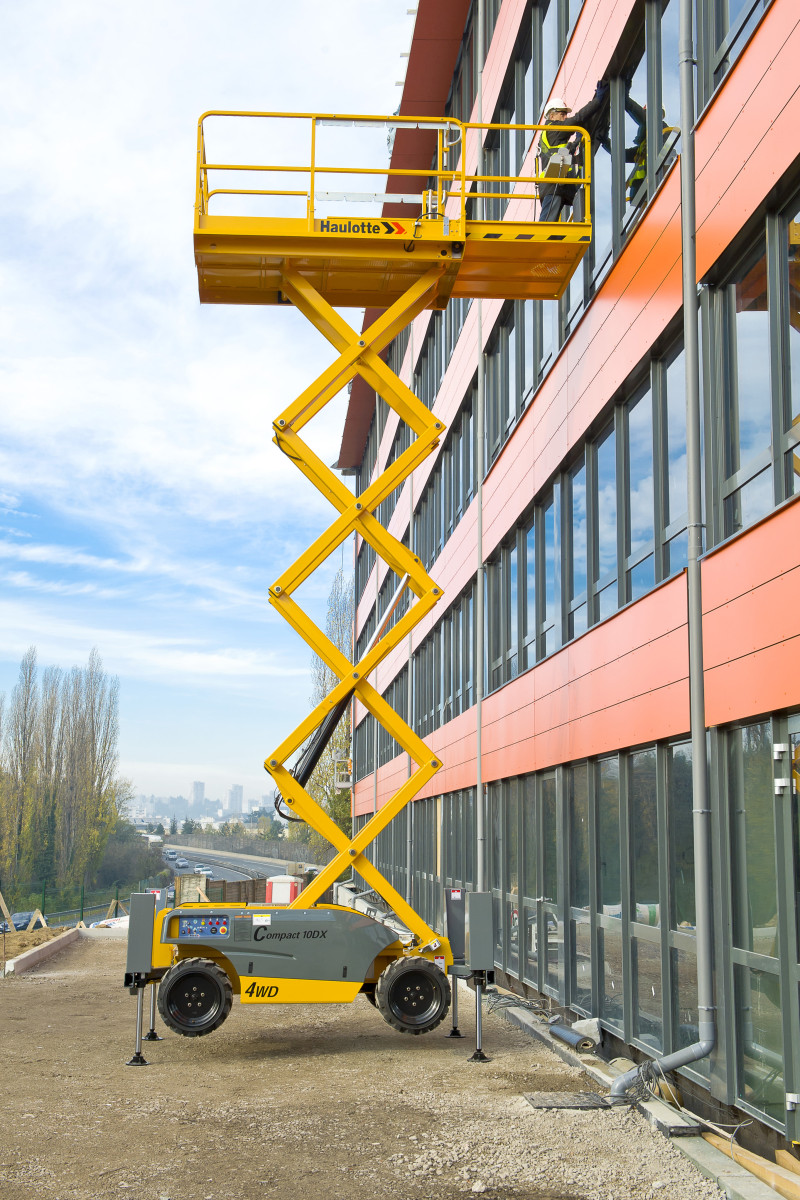

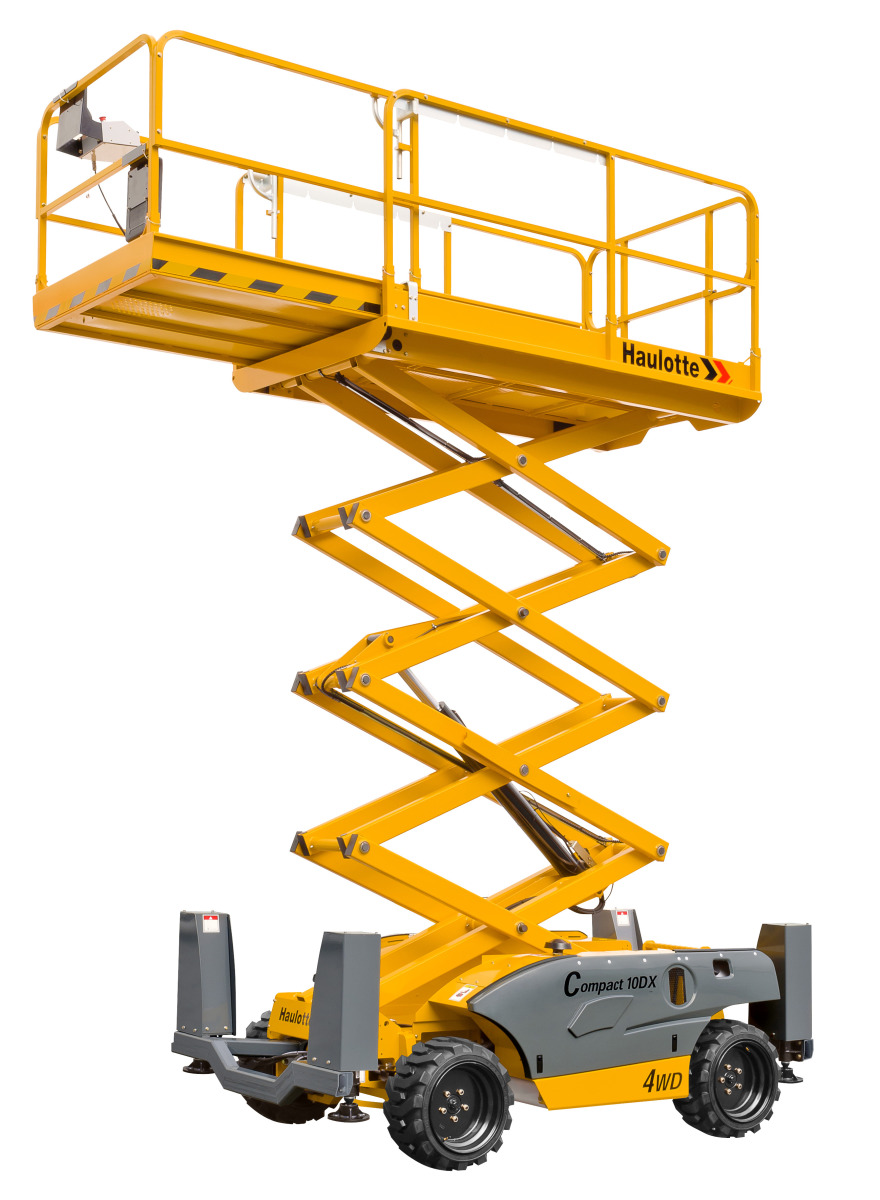

Diesel Scissor LiftsCompact 10 DX
- Outstanding rough terrain driving features
- 4 wheel drive
- Automatic differential lock
- Excellent gradeability (40 %)
- Ground clearance of 28 cm
- Robust and easy to maintain
- Outriggers positioned within the machine footprint
- Durable and reliable upper control box
- Optimized accessibility to components
- Plug-in diagnostic tool capable
- Exceptional productivity
- Fully proportional controls
- Narrow turning radius
- One switch to deploy and retract 4 outriggers
| Working height | 10.28 m |
| Platform height | 8.28 m |
| Lift capacity | 565 kg (3 pers.) |
| Platform length | 2.45 m |
| Extended platform length | 3.7 m |
| Platform extension length | 1.2 m |
| Platform width | 1.45 m |
| Storage height | 1.59 m |
| Height - stowed | 2.44 m |
| Width | 1.78 m |
| Length | 3.18 m |
| Wheelbase | 1.84 m |
| Drive speed | 0.6 - 5.5 km/h |
| Maximum drive height | 8.15 m |
| Gradeability | 40 % |
| Tilt alarm | 3 ° |
| Lift / lower speed | 35 s / 46 s |
| Turning radius - outside | 3.5 m |
| Tyres - foam-filled | 26 x 12 - 16.5 |
| Engine | Kubota, 18.5 kW (Stage 5 in EU) |
| Hydraulic system capacity | 75 l |
| Weight | 3 350 kg |
| Platform size - extended | 3.7 x 1.45 m |
| Number of extensions | 1 |
| Ground clearance | 28 cm |
| Lift capacity on the extension | 150 kg |
- 4 wheel drive, 2 wheel steer
- Brake release
- Foam filled all terrain tyres
- 1.2 m platform extension
- Removable operator’s control box
- 3° tilt alarm
- Automatic levelling outriggers
- Horn
- Hourmeter
- 12 V - 70 Ah batteries
- Hydraulic brakes
- Manual platform lowering valve
- Lanyard attachment points
- Towing hooks
- Side shields
- Non marking tyres (standard in AUS / NZ)
- 240 V power to the platform
- Swing-door gate (standard in AUS / NZ)
- Hydraulic generator 3.5 kW
- Biodegradable oil
- Cold Weather Package
- Telematics ready
- Motion alarm for movements and translation
- Travel alarm (standard in AUS / NZ)
- Rotating beacon (standard in AUS / NZ)
- Working light
- Foldable guard-rails
